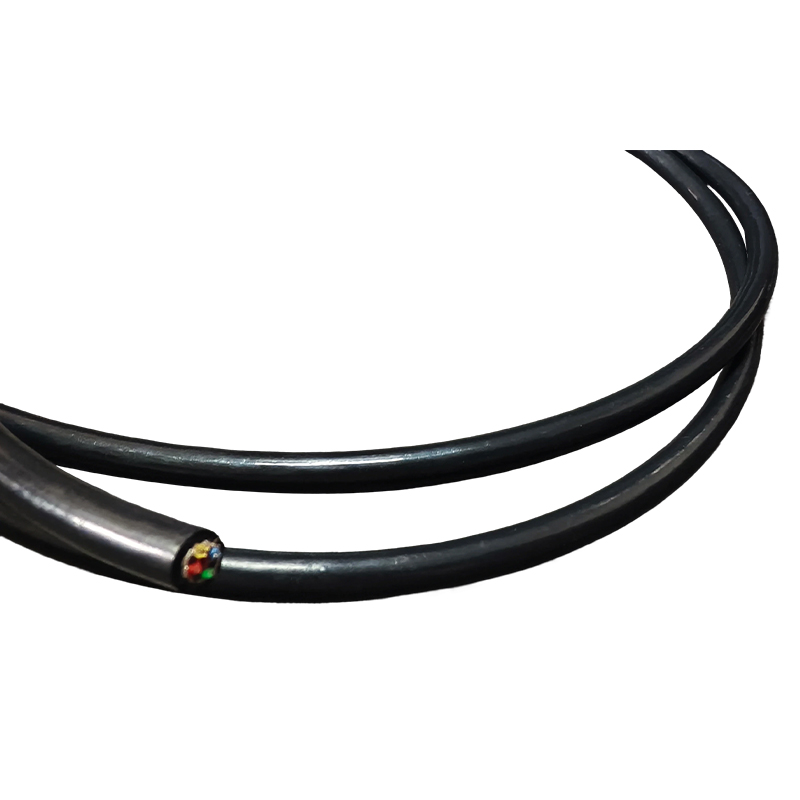

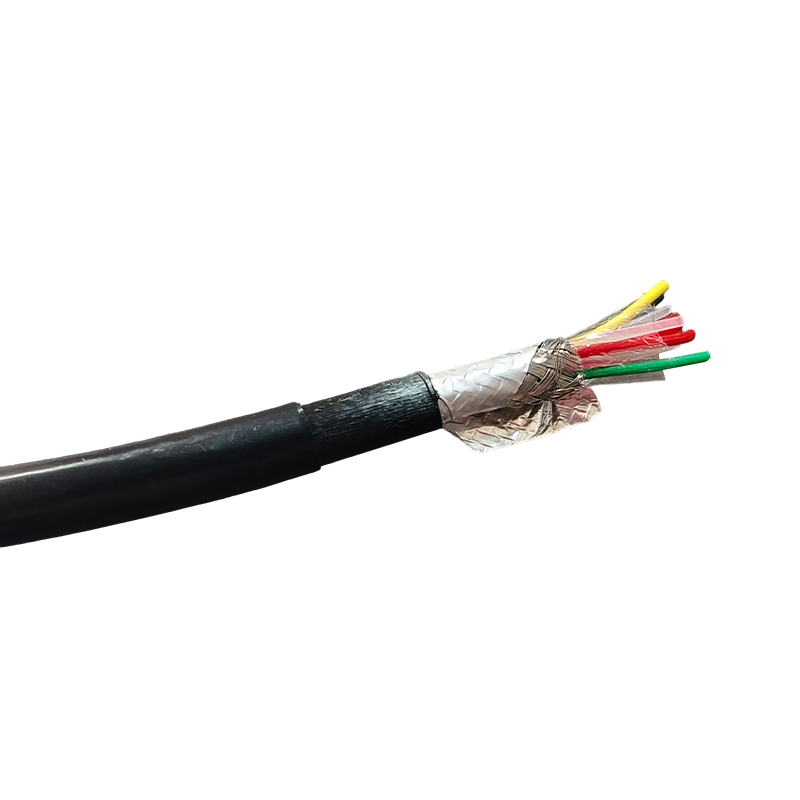

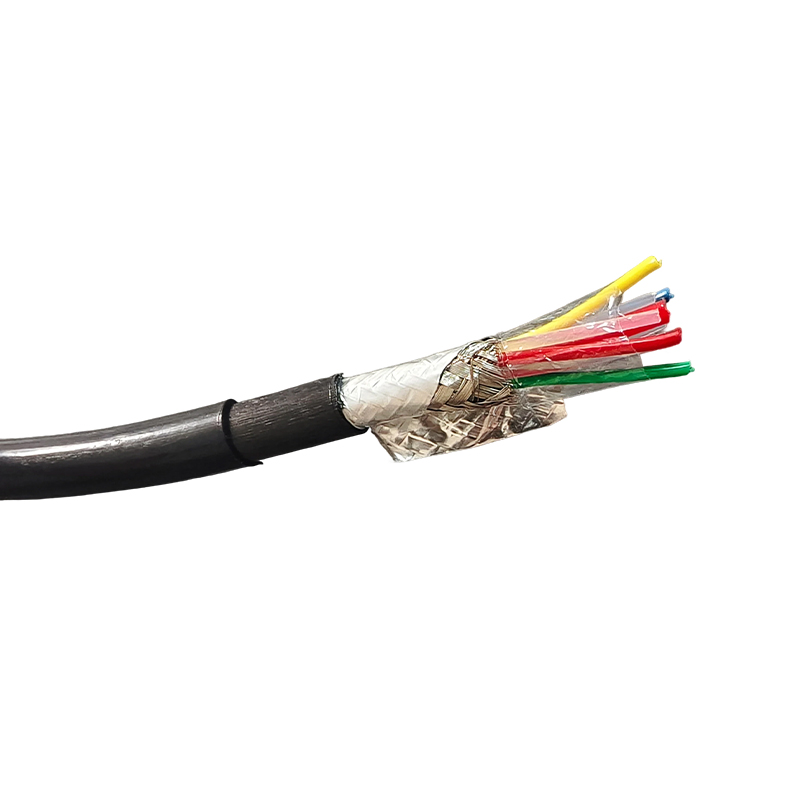

Liquid Level Sensor Cable FEP/KYPF 4*0.2mm-7/0.2TS-7.3-Black
FEP/KYPF 4*0.2mm-7/0.2TS-7.3-black
The production is strictly carried out in accordance with the conductor specification of "4*0.2mm". The actual cross-sectional area of each conductor must be stable at 0.2mm, and the error must be controlled within a very small range. The appearance of the wire should be smooth and flat, without bubbles, impurities, scratches, unevenness and defects. The black FEP sheath should be uniform in color, bright in color, and without obvious color difference.
Compensation wire, compensation cable and thermocoupleequipment are used for temperature measurement and controlsystems in electric power, metallurgy, petroleum, chemical,textile of some factories and scientific research departments.The compensate cable is simple and easy to lay, resistantwith moisture resistant,acid and alkali, high temperatureand aging,it is good at shielding to prevent outside
interference.
Temperature:
Fire-resistant,heat-resistanttype FF-GS -40℃~ +250°C
Fire-resistant,hightemperature-resistantHF4B-GS-40℃~ +380℃
Commontype -20℃~+100°C
Representation oftype,name and specifications:
The type of thermocouple and RTD: compensation wire for S、 R.B、K、E、J、Tand EA-type thermocouple using.
Insulation:

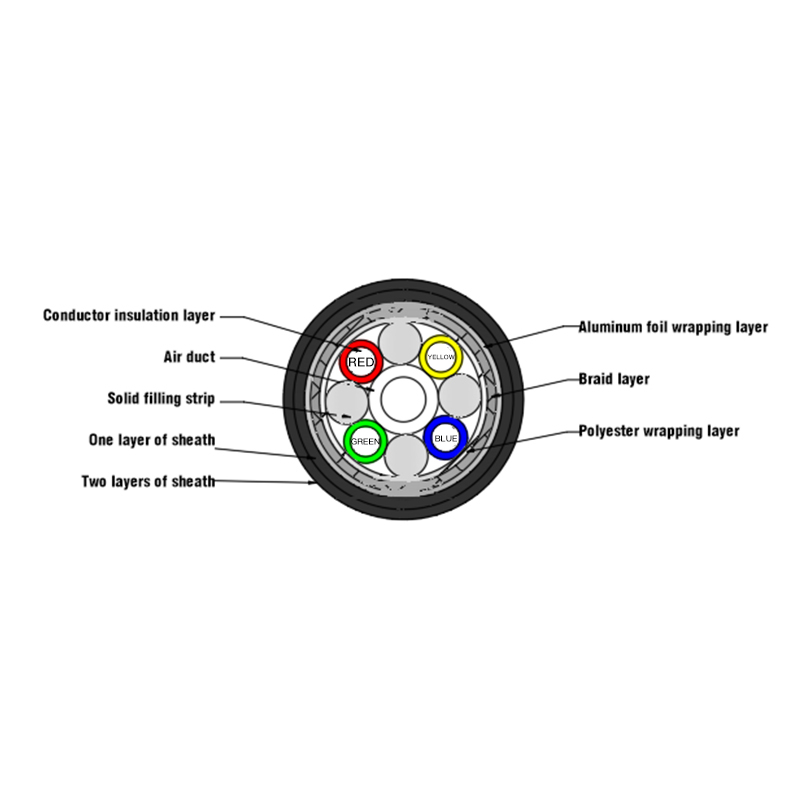

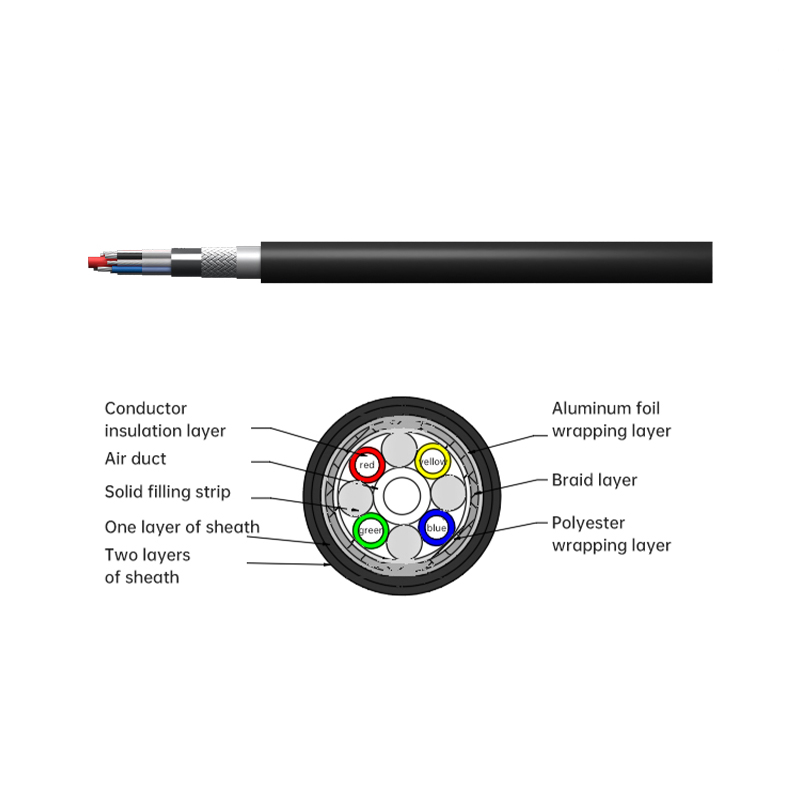

Divided into: FEP,PTFE, Polyimide Pl, etc.Screen:
Dividedinto:Tin/Nickel/304 stainless steel,aluminum
(single, double),etc.
Layers:single, double weaving
Weaving density:70%，80%，90%，95%etcRepresentation of type,name and specifications:
The type ofthermocouple and RTD: compensation wire for S、R.B、K、E、J、Tand EA-type thermocouple using.
